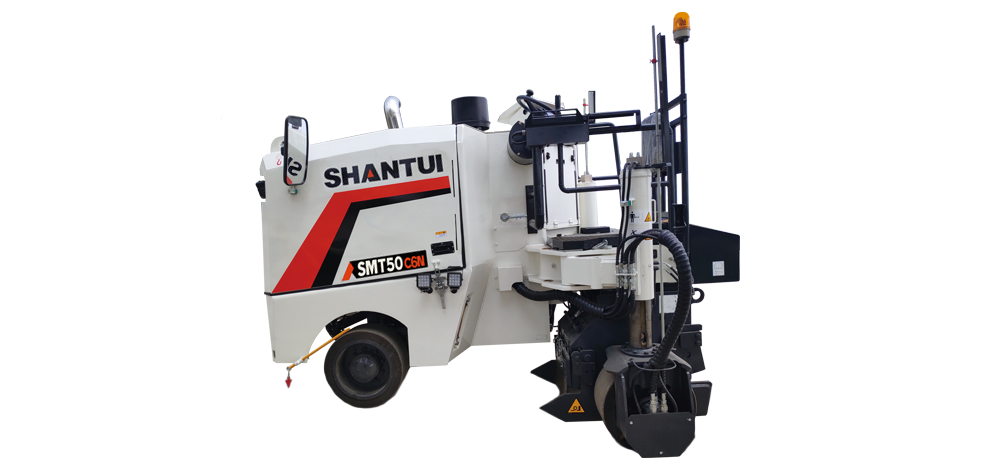

| Parameter | SMT50-C6N |
|---|---|
| Engine power(kW/rpm) | 103/2300 |
| Operating weight(kg) | 6600 |
| Maximum milling width(mm) | 500 |
| External dimensions | 3340*2130*2395 |
| Engine model | WeichaiWP4.1 |
| Maximum milling depth(mm) | 180 |
| Number of milling tools | 54 |
| Milling diameter including tools(mm) | 670 |
| Conveyor belt width(mm) | / |
| Operating speed(m/min) | 0-50 |
| Travel speed(km/h) | 0-8.0 |
| Emissions (Indicated as per China standards) | Eu stage IIIA |
